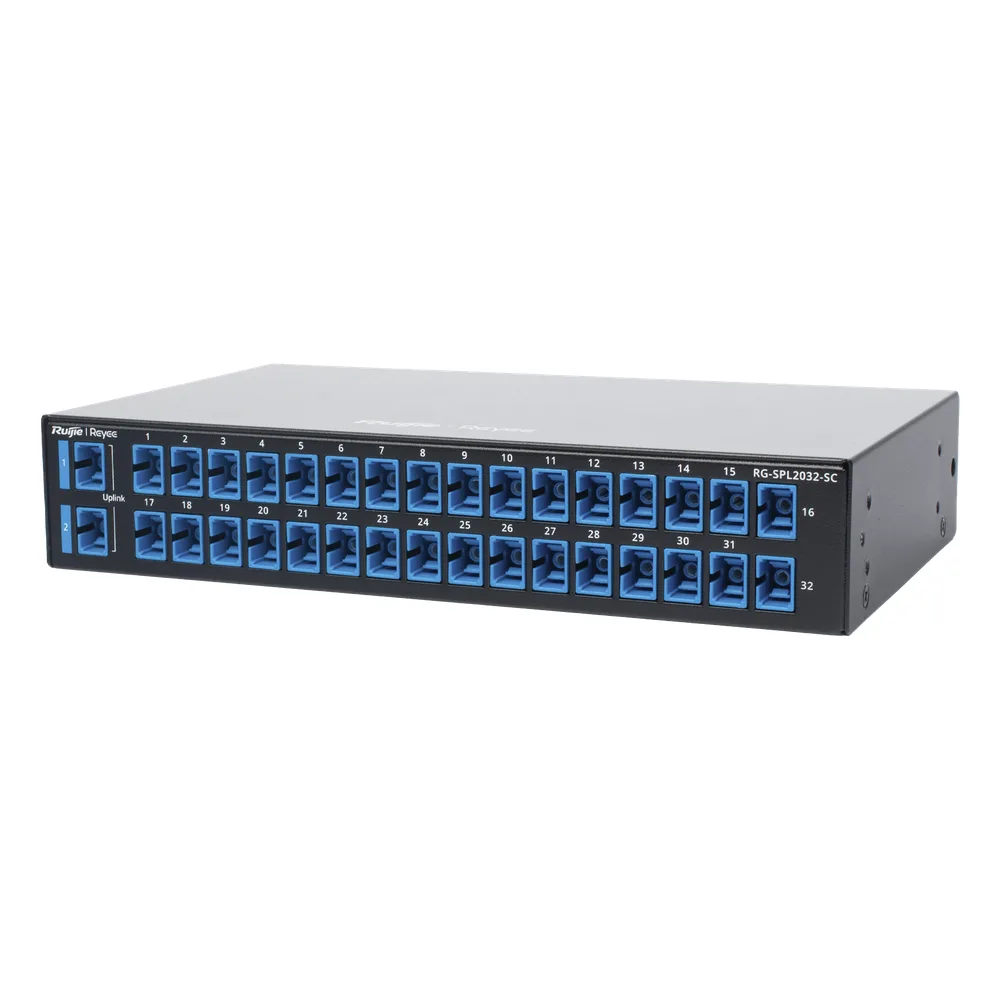

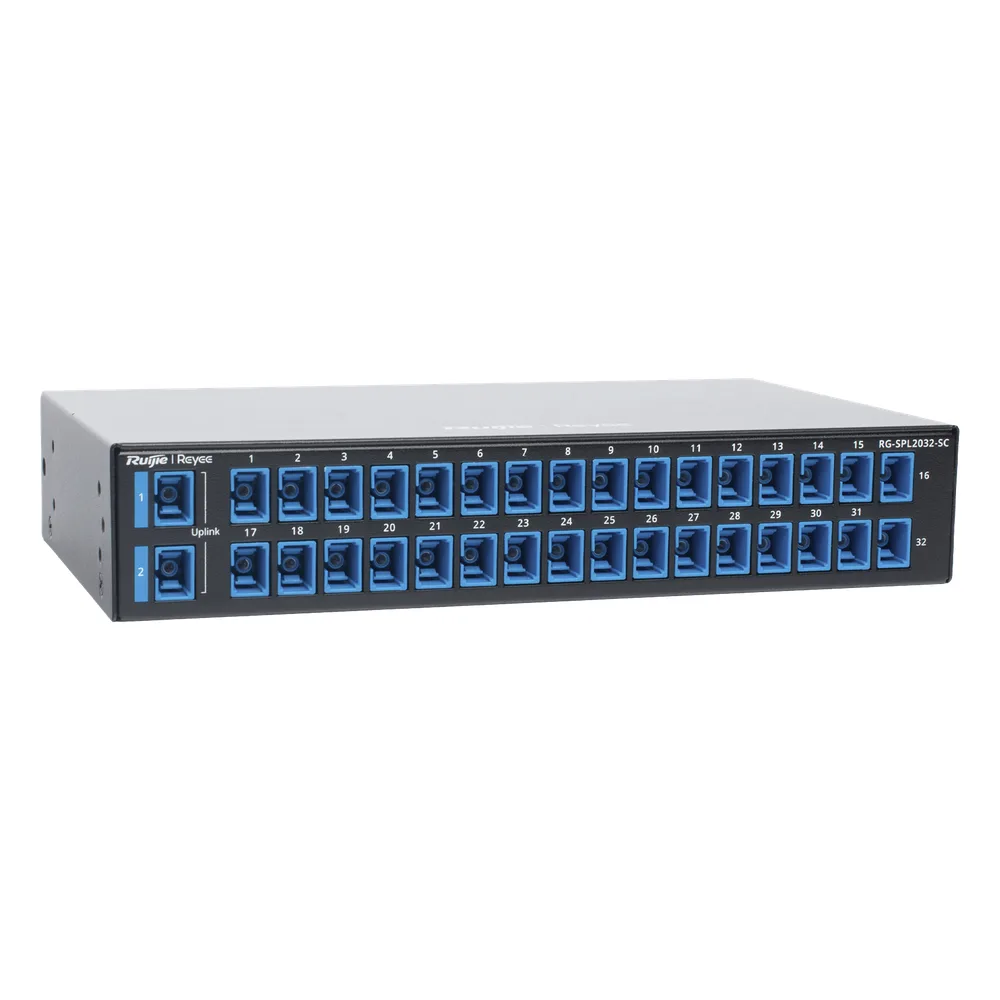

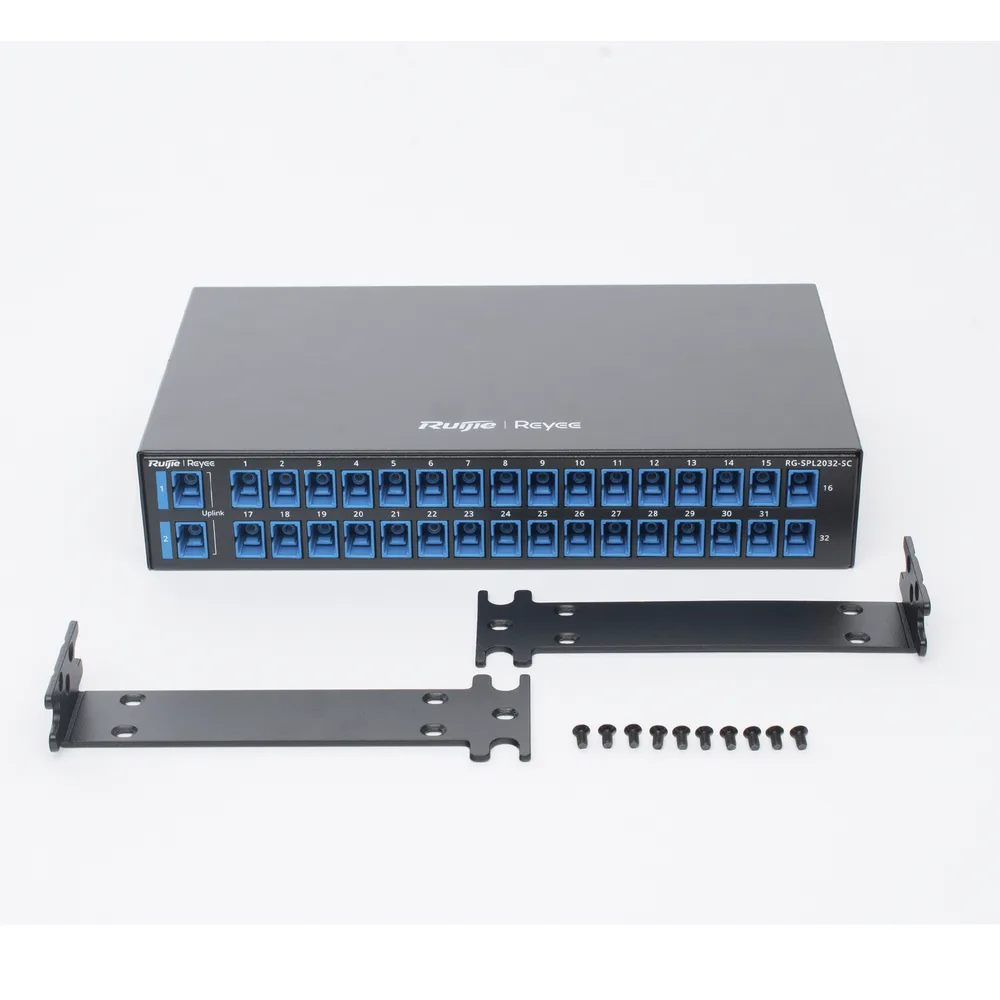

e-Lighten Splitter Pasivo 2/32, Puertos PON SC/UPC, Frecuencias soportadas de 1260nm a 1650nm con hasta 500 mW de Potencia de Entrada

Key Specification

General Specifications

• Model: RG-SPL2032-SC
• Weight: 0.98kg (2.16 lbs.)
• Operating Temperature: –40°C to +85°C (–40°F to +185°F)
• Warranty: 3 years

Technical Specifications

• Operating Wavelength: 1260 nm to 1650nm
• Dimensions (W x D x H): 220 mm x 130 mm x 42 mm (8.66 in. x 5.12 in. x 1.65 in.)
• Maximum Input Power: 500 mW

Performance Specifications

• Temperature-Dependent Loss: ≤ 0.3 dB
• Wavelength-Dependent Loss: 0.4 (1310 + 40), 0.4 (1550 + 40)
• Insertion Loss: ≤ 17.7 dB
• Port Insertion Loss Uniformity: ≤ 1.5 dB
• Return Loss: ≥ 50 dB
• Polarization-Dependent Loss: ≤ 0.3 dB
